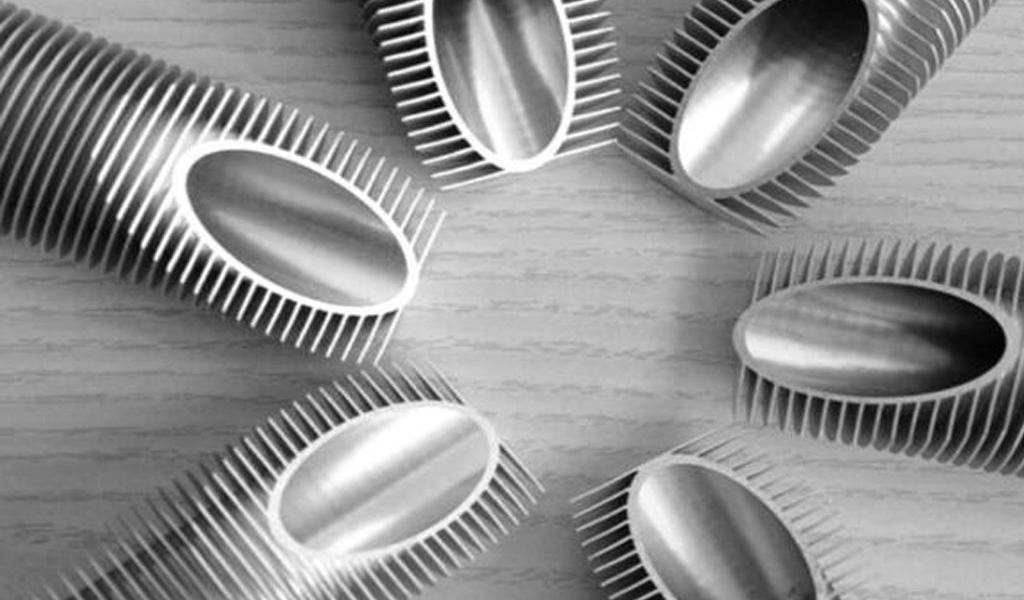

What is a Finned Tube?

A finned tube is a type of heat exchanger component designed to enhance the heat transfer efficiency between fluids or between a fluid and a surrounding environment. It consists of a tube with extended surface area provided by fins attached to its outer surface.

The primary purpose of finned tubes is to increase the heat transfer surface area, allowing for more effective heat exchange between the fluid inside the tube and the surrounding medium (usually air). The fins create additional surface area that facilitates improved heat dissipation or absorption.

Finned tubes are commonly used in various heat exchanger applications, such as air-cooled heat exchangers, where the objective is to transfer heat from a hot fluid (often a process fluid or refrigerant) to the surrounding air. The increased surface area provided by the fins helps improve the overall heat transfer efficiency of the system.

There are different types of finned tubes, including plain fin tubes, serrated fin tubes, and helical finned tubes, each designed to meet specific heat transfer requirements for different applications. The choice of finned tube design depends on factors such as the type of fluids involved, the temperature ranges, and the desired heat transfer rates.

Factors to Consider When Choosing a Fin Material

Selecting the appropriate fin material for a given application in a finned tube system is crucial to ensure optimal performance, durability, and efficiency. Several factors should be considered when choosing a fin material:

1. Thermal Conductivity:

   • Choose a fin material with high thermal conductivity to facilitate efficient heat transfer between the fluid inside the tube and the external environment. Common materials with good thermal conductivity include aluminum and copper.

2. Corrosion Resistance:

   • Consider the corrosive properties of the fluid or environment in which the finned tube will operate. Select a fin material that is resistant to corrosion to ensure a longer lifespan. For example, aluminum fins are generally more corrosion-resistant than copper fins in certain environments.

3. Cost:

   • Evaluate the cost of the fin material, including manufacturing and installation expenses. Aluminum is often more cost-effective than copper, but the specific requirements of the application may influence the cost considerations.

4. Compatibility with Base Tube Material:

   • Ensure compatibility between the fin material and the material of the base tube. This is important to prevent issues such as galvanic corrosion, where dissimilar metals can react adversely when in contact.

5. Strength and Durability:

   • Consider the mechanical strength and durability of the fin material, especially if the finned tube system will be exposed to mechanical stresses, vibrations, or other potentially damaging conditions. Copper fins, for instance, are known for their strength.

6. Weight:

   • The weight of the fin material can be a factor, especially in applications where weight is a critical consideration. Aluminum is lighter than copper, making it a preferred choice in weight-sensitive applications.

7. Temperature Range:

   • Assess the temperature range of the application to ensure that the selected fin material can withstand the operating temperatures without significant degradation in performance or structural integrity.

8. Ease of Fabrication:

   • Consider the ease of fabrication and manufacturing processes associated with the fin material. Some materials may be easier to work with, leading to more cost-effective production.

9. Heat Capacity:

   • The heat capacity of the fin material can impact the overall thermal performance of the finned tube system. Understanding how the material responds to changes in temperature is important for accurate heat transfer calculations.

10. Environmental Considerations:

    • Consider any environmental regulations or requirements that may affect the choice of fin material, especially if the system is intended for specific industries or regions with stringent environmental standards.

What are the Different Types of Fin Materials?

Several materials are commonly used for fins in finned tube applications, each with its own set of characteristics suited to different operational requirements. Here are some of the commonly used fin materials:

1. Aluminum:

   • Advantages: Lightweight, good thermal conductivity, corrosion-resistant (especially in certain environments), cost-effective.
   • Applications: Air-cooled heat exchangers, automotive radiators, HVAC systems.

2. Copper:

   • Advantages: High thermal conductivity, excellent corrosion resistance, good strength and durability.
   • Applications: Air conditioning and refrigeration systems, heat exchangers in power plants, process industries.

3. Carbon Steel:

   • Advantages: Good strength, cost-effective.
   • Applications: Industrial heat exchangers, HVAC systems.

4. Stainless Steel:

   • Advantages: Corrosion-resistant, good strength and durability, suitable for high-temperature applications.
   • Applications: Chemical processing, food and beverage industry, corrosive environments.

5. titanium parts:

   • Advantages: Lightweight, excellent corrosion resistance (especially in aggressive environments), high strength.
   • Applications: Aerospace, marine, chemical processing.

6. Brass:

   • Advantages: Good thermal conductivity, corrosion-resistant, attractive appearance.
   • Applications: HVAC systems, decorative applications.

7. Nickel Alloys:

   • Advantages: Corrosion-resistant, high-temperature resistance.
   • Applications: Chemical processing, aerospace, power generation.

8. Zinc-coated (Galvanized) Steel:

   • Advantages: Corrosion-resistant due to zinc coating, cost-effective.
   • Applications: HVAC systems, industrial heat exchangers.

9. Inconel:

   • Advantages: High-temperature resistance, corrosion-resistant.
   • Applications: Aerospace, chemical processing, marine.

10. Lead:

    • Advantages: Soft and malleable, good for certain specialized applications.
    • Applications: Uncommon due to toxicity concerns, but can be found in specific industrial applications.

Which Fin Material is Right for You?

The choice of fin material depends on several factors specific to your application. Here are some considerations to help you determine which fin material might be right for you:

1. Thermal Conductivity Requirements:

   • If high thermal conductivity is crucial for your application, materials like copper or aluminum are good choices. Copper has excellent thermal conductivity, while aluminum is lightweight and also offers good thermal performance.

2. Corrosion Resistance:

   • Consider the corrosive nature of the environment or fluid being processed. Stainless steel, aluminum, and some nickel alloys are known for their corrosion resistance. Choose a material that can withstand the specific conditions of your application.

3. Weight Considerations:

   • If weight is a critical factor, especially in applications such as aerospace or automotive, aluminum is often preferred due to its lightweight nature.

4. Strength and Durability:

   • Evaluate the mechanical strength and durability requirements. Copper is known for its strength, while materials like titanium offer a combination of strength and low weight.

5. Cost Considerations:

   • Consider the overall cost of the material, including manufacturing and installation expenses. Aluminum is often more cost-effective than copper sheet, but the specific requirements of your application may influence cost considerations.

6. Compatibility with Base Tube Material:

   • Ensure compatibility between the fin material and the material of the base tube to avoid issues such as galvanic corrosion. This is particularly important if dissimilar metals come into contact.

7. Temperature Range:

   • Assess the temperature range of your application. Some materials, like stainless steel and nickel alloys, are suitable for high-temperature environments.

8. Environmental Regulations:

   • Consider any environmental regulations or requirements that may affect the choice of fin material. Some materials may be restricted or require additional considerations in certain industries or regions.

9. Specific Industry Standards:

   • Certain industries may have specific standards or regulations regarding the materials used in heat exchangers. Ensure that the chosen fin material complies with relevant industry standards.

10. Manufacturability:

    • Consider the ease of fabrication and manufacturing processes associated with the fin material. Some materials may be easier to work with, leading to more cost-effective production.

11. Long-Term Maintenance:

    • Assess the long-term maintenance requirements of the system. Some materials may require more frequent maintenance or have specific considerations for upkeep.

Applications of Each Fin Material

The choice of fin material in heat exchangers and finned tube systems depends on the specific requirements of the application. Here are some common applications for each fin material:

1. Aluminum:

   • Applications: Air-cooled heat exchangers, automotive radiators, HVAC systems.
   • Reasons: Lightweight, good thermal conductivity, cost-effective.

2. Copper:

   • Applications: Air conditioning and refrigeration systems, heat exchangers in power plants, process industries.
   • Reasons: High thermal conductivity, excellent corrosion resistance, good strength.

3. Carbon Steel:

   • Applications: Industrial heat exchangers, HVAC systems.
   • Reasons: Good strength, cost-effective.

4. Stainless Steel:

   • Applications: Chemical processing, food and beverage industry, corrosive environments.
   • Reasons: Corrosion-resistant, good strength and durability, suitable for high-temperature applications.

5. Titanium:

   • Applications: Aerospace, marine, chemical processing.
   • Reasons: Lightweight, excellent corrosion resistance, high strength.

6. Brass:

   • Applications: HVAC systems, decorative applications.
   • Reasons: Good thermal conductivity, corrosion-resistant, attractive appearance.

7. Nickel Alloys:

   • Applications: Chemical processing, aerospace, power generation.
   • Reasons: Corrosion-resistant, high-temperature resistance.

8. Zinc-coated (Galvanized) Steel:

   • Applications: HVAC systems, industrial heat exchangers.
   • Reasons: Corrosion-resistant due to zinc coating, cost-effective.

9. Inconel:

   • Applications: Aerospace, chemical processing, marine.
   • Reasons: High-temperature resistance, corrosion-resistant.

10. Lead:

    • Applications: Uncommon due to toxicity concerns, but can be found in specific industrial applications.
    • Reasons: Soft and malleable, good for certain specialized applications.

Cost Considerations

Copper is the most expensive of the three materials, followed by aluminum and stainless steel. However, the cost of the fin material is only a small part of the overall cost of a heat exchanger. Other factors, such as the cost of the tube material and the cost of manufacturing the heat exchanger, are also important.
